LK-AMPD-S High Speed Amplified Microwave InGaAs Photodetector
- Kev Kub Ceev, Bandwidth Dav
- Incorporated Bias-T
- O/E Hybrid Kev Sib Koom Ua Ke
- Siab nce, Suab qis, Broadband
- Hermetically kaw, SMA Connector
- Tsawg Tsaus Tam Sim No, siab teeb liab-rau-suab nrov piv.
- Daim ntawv me me.
Hauj lwm yam khoom
LK-AMPD-S yog ib qho kev sib xyaw ntawm InGaAs photodiode thiab lub amplifier uas tsis muaj suab nrov, tsim los rau kev teb dav dav los ntawm 1000 txog 1650nm thiab muab 15 dB RF nce. Nws muab kev ua haujlwm ceev ceev nrog bandwidths ntawm 12GHz thiab 18GHz, thiab siv hluav taws xob los ntawm +5V.
Cov module no sib xws nrog tus qauv ib hom 9/125μm fiber thiab muaj SMA connector nrog 50 ohm impedance match.
LK-AMPD-S raug kaw ruaj ruaj rau kev tiv thaiv ib puag ncig thiab muaj lub qauv tsim uas tsis hnyav, nrog rau qhov hnyav tsawg dua 23 grams. Nws ua raws li Txoj Cai Txwv Tsis Pub Siv Cov Khoom Phom Sij (RoHS) 2.0, kom ntseeg tau tias muaj kev ruaj khov ntawm ib puag ncig thiab ua raws li cov qauv kev nyab xeeb nruj.
Kev Specifications
| Hom & Tsis Txaus Siab Tshaj Tawm | ||||
|---|---|---|---|---|
| parameter | Lub Cim. | hom | Rating | Tsev |
| Cia kub ntau yam | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Kev khiav hauj lwm qhov kub thiab txias | TC | 25 | -40 ～ +85 | ℃ |
| Tsis zoo Voltage | VR | +5 | +5 ～ +9 | V |
| Optical Input zog | Pin | 0 | + 10 | dBm |
| Hlawv-tawm Optical Power | PB | - | + 13 | dBm |
| Lead soldering kub | Tp | 280 (10 feeb) | 330 (10 feeb) | ℃ |
| Hluav taws xob / Optical yam ntxwv (TC = 22 ± 3 ℃) | ||||||
|---|---|---|---|---|---|---|
| parameter | SYM | Kuaj Mob | Parameter Qhov Tseem Ceeb | Tsev | ||
| Wavelength Ntau | λ | - | 1000-1650 Nws | nm | ||
| Zaus Muaj Ntau Yam | - | - | X - Band | Koj - Band | - | |
| Small Signal Bandwidth | f-3dB | TC = 22 ± 3 ℃ | 0. 3 ～ 12 | 0. 8 ～ 19.5 | GHz | |
| Lub luag haujlwm | Re | VR =+5V, Pin = 10 mW | L = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| L = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Amplitude Flatness | A | TC = -45 ～ + 85 ℃ | ≤ ± 2 | dB | ||
| Saturation Optical Fais Fab | Ps | VR =+ 5 V, λ = 1550 nm AC Modulated |
10 | dBm | ||
| RF Teeb Liab Nce (Ib txwm) | G | - | 15 ± 1 | dB | ||
| Saturation RF tso zis zog | Ptawm | - | +3 | dBm | ||
| Tsim Tawm VSWR | VSWR | - | 2 | - | ||
| Tsim Tawm Tsis Raug | RL | - | 50 | Ω | ||
● Ib txwm teb Curves

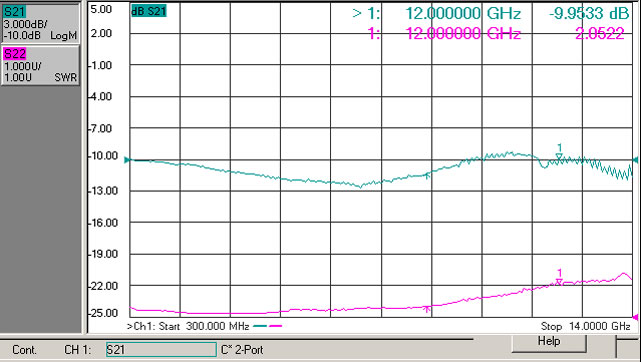

(Daim Duab 1 X - Kev Teb Zaus ntawm Lub Tshuab Nrhiav Duab Band)

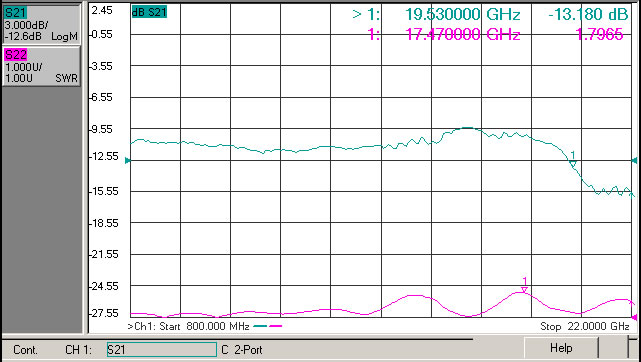

(Daim Duab 2 Ku - Band Photodetector Zaus Teb)

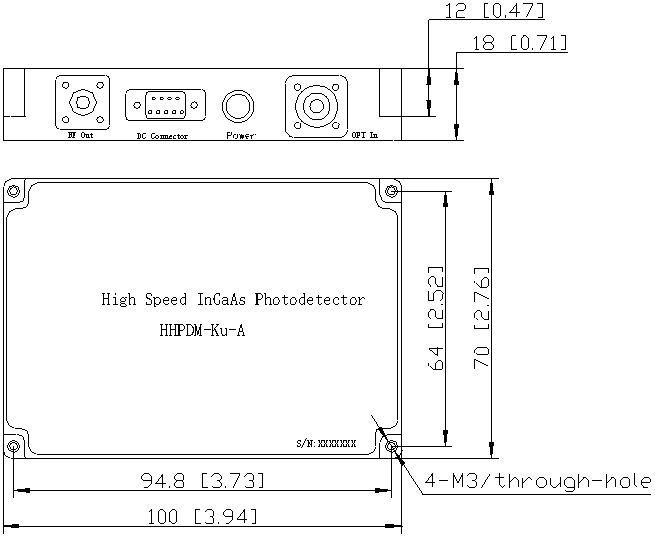

●Qhov Loj thiab Cov Pins (Chav: hli [nti])
RF Txuas: SMA
●Cov Lus Qhia Txiav
Daim ntawv 1:
| Code | RF Teeb Liab Tau Txais | hais |
| S | 15 dB | Zaus Ib Txwm & Nruab Nrab |
Daim ntawv 2:
| Code | Analog Bandwidth |
| X | 0. 3 ~ 12 GHz |
| Ku | 0.8 ～ 19.5 GHz |
Daim ntawv 3:
| Code | connector hom | hais |
| N | Tsis muaj Connector | Ib hom 9 / 125 μm fiber ntau pigtail |
| A | FC / APC | |
| P | FC / PC |
● Kev ceev faj
Lub fiber bending radius tsis tsawg tshaj 20 hli rau kev zam fiber puas tsuaj.
Ua ntej txuas rau opto-circuit, xyuas kom tseeb tias lub fiber coupling facet huv si.
Qhov kev tiv thaiv ESD tsim nyog yog qhov yuav tsum tau muaj nyob rau hauv kev khaws cia, kev thauj mus los thiab kev siv.
Tag nrho peb cov qauv photodetectors tuaj yeem hloov kho rau hauv modules!
