LK-FCAMPD Amplified RF InGaAs Photodetector
- Dav Dav Dav
- Incorporated Bias-T
- O/E Hybrid Kev Sib Koom Ua Ke
- Siab nce, Suab qis, Broadband
- SMA Txuas
- Tam sim no tsaus ntuj qis, qhov sib piv ntawm lub teeb liab thiab suab nrov siab
- Daim ntawv me me.
Hauj lwm yam khoom
LK-FCAMPD yog kev sib xyaw ua ke ntawm cov thev naus laus zis kho qhov muag thiab hluav taws xob, kev sib koom ua ke ntawm broadband InGaAs photodiode nrog lub amplifier suab nrov qis. Lub cuab yeej no rhiab heev rau cov wavelengths ntawm 1000 thiab 1650nm, ua tsaug rau nws cov InGaAs PIN photodiode, thiab lub amplifier suab nrov qis muab RF nce txij li 20 txog 30dB.
LK-FCAMPD muaj cov kev xaiv bandwidth uas koj tuaj yeem teeb tsa tau, suav nrog 1 gigahertz, 2.5 gigahertz, thiab cov bandwidth uas koj tuaj yeem hloov kho tau txog li 5 gigahertz. Lub cuab yeej no ua haujlwm ntawm lub zog fais fab +5-volt thiab muaj lub qhov txuas fiber-optic FC (ntsej muag sib cuag) rau kev nkag mus rau hauv optical. Lub qhov tso zis RF raug pab txhawb los ntawm lub qhov txuas SMA, uas yog impedance-matched rau 50 ohms.
LK-FCAMPD tsis hnyav heev, nrog rau qhov hnyav tsawg dua 25 grams, ua rau nws haum rau ntau yam kev siv uas nqa tau yooj yim thiab me me. Nws tau ntawv pov thawj tias ua raws li Txoj Cai Txwv Tsis Pub Siv Cov Khoom Phom Sij (RoHS) 2.0, qhia txog nws txoj kev cog lus rau cov qauv ib puag ncig thiab kev nyab xeeb.
Kev Specifications
| Hom & Tsis Txaus Siab Tshaj Tawm | ||||
|---|---|---|---|---|
| parameter | Lub Cim. | hom | Rating | Tsev |
| Cia kub ntau yam | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Kev khiav hauj lwm qhov kub thiab txias | TC | 25 | -40 ～ +70 | ℃ |
| Tsis zoo Voltage | VR | +5 | +4.75 ～ +5.25 | V |
| Optical Input zog | Pin | 0 | +5 | dBm |
| Hlawv-tawm Optical Power | PB | - | + 13 | dBm |
| Lead soldering kub | Tp | 280 (10 feeb) | 330 (10 feeb) | ℃ |
| Hluav taws xob / Optical yam ntxwv (TC = 22 ± 3 ℃) | |||||||
|---|---|---|---|---|---|---|---|
| parameter | SYM | Kuaj Mob | Parameter Qhov Tseem Ceeb | Tsev | |||
| Wavelength Ntau | λ | - | 1000-1650 Nws | nm | |||
| Zaus Muaj Ntau Yam | - | - | L - Band | S - Band | CM | - | |
| Small Signal Bandwidth | f-3dB | TC = 22 ± 3 ℃ | 0.03 ~ 1 | 0.03 ~ 2.5 | 0.1 ~ 5 | GHz | |
| Lub luag haujlwm | Re | VR =+5V, Pin = 1 mW | L = 1310 nm | ≥ 0.85 | ≥ 0.90 | ≥ 0.90 | A / W |
| L = 1550 nm | ≥ 0.90 | ≥ 0.90 | ≥ 0.90 | ||||
| RF Teeb Liab Tau Txais | G | - | 30 ± 2 | 20 ± 2 | 20 ± 2 | dB | |
| Amplitude Flatness | A | TC = -40 ～ + 70 ℃ | ≤ ± 1.5 | ≤ ± 1.5 | ≤ ± 2 | dB | |
| Tsim Tawm VSWR | VSWR | - | 2 | 2 | ≤ ± 2.2 | - | |
| Saturation Optical Fais Fab | Ps | VR = +5 V, λ = 1550 nm AC Modulated |
+5 | dBm | |||
| Kev Tawm Tsam RF Tso Tawm Zog | Ptawm | - | 15 | dBm | |||
| Tsaus Ntuj Tam Sim No | ID | - | ≤10 | nA | |||
| Tsim Tawm Tsis Raug | RL | - | 50 | Ω | |||
● Ib txwm teb Curves

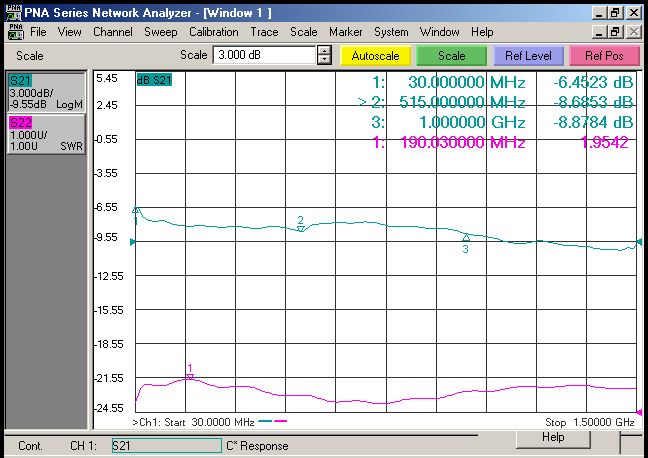

(Daim Duab 1 L-Band FCAMPD InGaAs Photodetector Zaus Teb)

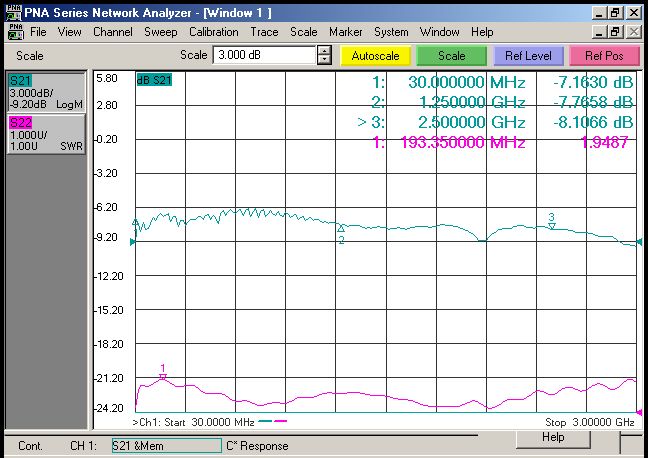

(Daim Duab 2 S-Band FCAMPD InGaAs Photodetector Zaus Teb)
(Daim Duab 3 C-Band FCAMPD InGaAs Photodetector Zaus Teb)
● Dimension thiab Pins (Unit: mm [inch])
Optical Connector: FC (ntsej muag-contact) fiber-optic connector
RF Txuas: SMA
● Cov ntaub ntawv xaj xaj
Daim ntawv 1:
| Code | Analog Bandwidth |
| L | 0.03 mus rau 1 GHz |
| S | 0.03 mus rau 2.5 GHz |
| CM | Kev Kho Kom Haum (≦ 5GHz) |
● Kev ceev faj
Ua ntej txuas rau opto-circuit, xyuas kom tseeb tias lub fiber coupling facet huv si.
RF interface thiab optical interface yuav tsum tau npog nrog lub hau plua plav thaum tsis siv.
Qhov kev tiv thaiv ESD tsim nyog yog qhov yuav tsum tau muaj nyob rau hauv kev khaws cia, kev thauj mus los thiab kev siv.
Tag nrho peb cov qauv photodetectors tuaj yeem hloov kho rau hauv modules!
daim ntawv sau npe
Kev Ua Haujlwm Radar
Hluav Taws Xob Hluav Taws Xob
Kev Ntsuas Antenna
Kev Sib Txuas Lus Fiber Optic
Kev Ruaj Ntseg thiab Kev Soj Ntsuam
