LK-NY55D siab zog DWDM DFB Laser

  • Kev Sib Txuas Tam Sim No Ncaj Qha
  • High-Dynamic-Range
  • Tam Sim No Qis Tshaj Plaws
  • Siab tso zis zog
  • 14pin Npauj Npaim Pob Khoom
  • Kev Ua Haujlwm Kub: -20 txog 70 ℃
  • High ntseeg
  • Txog li 100mw lub zog tso zis siab
  • Kev tswj hwm polarization (PM) fiber
NCO NTSOOV

+ 86 29 88244373

Hauj lwm yam khoom

LK-NY55D laser yog tsim los ua haujlwm ua lub zog siab, wavelength-specific optical emitter, uas zoo tagnrho rau kev koom ua ke nrog lub modulator sab nraud hauv CATV thiab DWDM systems. Nws yog qhov tsim nyog tshwj xeeb rau cov ntawv thov uas muaj super trunking thiab kev faib tawm. Cov wavelengths muab los ntawm cov koob no ua raws li ITU Grid cov qauv hauv ob qho tib si ntau thiab cov lus qhia channel.

Cov koob no los nrog polarization-maintaining (PM) fiber thiab nta direct current (dc) coupling. Nws suav nrog lub Thermoelectric Cooler (TEC), lub thermistor rau kev ntsuas kub, thiab lub monitor photodiode rau kev saib xyuas lub zog optical. Lub module no nyob hauv 14-pin butterfly pob uas sib xws nrog OC-48 pin layout, thiab nws suav nrog lub optical isolator hauv pob nws tus kheej.

Kev Specifications
Hluav taws xob / Optical yam ntxwv (TC = 25 ± 3 ℃)
parameter Lub Cim. mob Min hom Max Chav nyob
Zaus f - 0.01 - 1 Ghz
Bandwidth (-3dB, Kuv = 200mA) S21 - 1     Ghz
Lub zog tso zis kho qhov muag P

40 mW version, T = Tset, KuvF = KuvOP50 mW version, T = Tset, KuvF = KuvOP63 mW version, T = Tset, KuvF = KuvOP80 mW version, T = Tset, KuvF = KuvOP100 mW version, T = Tset, KuvF = KuvOP
40
50
63
80
100		 - - mW
Thershold tam sim no Ib Bol - - 40 mA
Kev ua haujlwm tam sim no Iop 40 mW version, BOL
50 mW version, BOL
63 mW version, BOL
80 mW version, BOL
100 mW version, BOL		 -
-
-		 -
-
-		 280
350
450
580
650		 mA
Kev ua haujlwm voltage Vop BOL, kuvF = KuvOP - - 2.5 V
Qhov siab tshaj plaws ntawm qhov ntev λ T = Tset, IF = KuvOP - 1550 - nm
Suab nrov rative Yob - - - -160 dB / Hz
Qhov piv ntawm kev txo qis ntawm sab-hom SMSR   30 - - dB
Kev puas tsuaj ntawm polarization PER IF = KuvOP 17 - - dB
Wavelength drift hla TC ntau ∆ λSAUM TOJ KAWG NKAUS T = TOP - - 40 pm
Kev tsis kam ntawm thermistor Rth TOP= 25 ℃ 9.5 10 10.5 KΩ
Cov Coefficients ntawm Thermistor Temp. TCTH TOP= 25 ℃ - -4.4 - %/°C
TEC tam sim no Itec -20 ℃ <TC<70 ℃ -1.0 - 1.5 A
TEC voltage Vtec -20 ℃ <TC<70 ℃ -2.0 - 3.0 V
RF impedance Zine 40MHz - 1002MHz 1 - 6 Ω
Saib xyuas PD tam sim no Im IF = IOP, VMPD = -5 V 0.1 - 2.5 mA
Saib Xyuas PD Tam sim no tsaus ntuj (PD) Id IOP = 0 mA, VMPD = -5 V - - 0.2 uA
Hom & Tsis Txaus Siab Tshaj Tawm
parameter Lub Cim. mob Min. Max. Tsev
Laser pem hauv ntej DC tam sim no If - - 750 mA
Laser rov qab voltage V - - 2 V
Photodiode Rov Qab Voltage VR - - 10 V
lag luam kub Yuav - -20 + 70 ° C
cia kub Ts - -40 + 85 ° C
ESD - HBM: R = 1500 Ω, C = 100 pF -500 500 V

Lus Cim: Txhua lub laser chips los ntawm cov wafers uas tau ntawv pov thawj siv ntau yam khoom siv uas yuav tsum ua tiav qhov txiaj ntsig zoo rau kev hlawv.

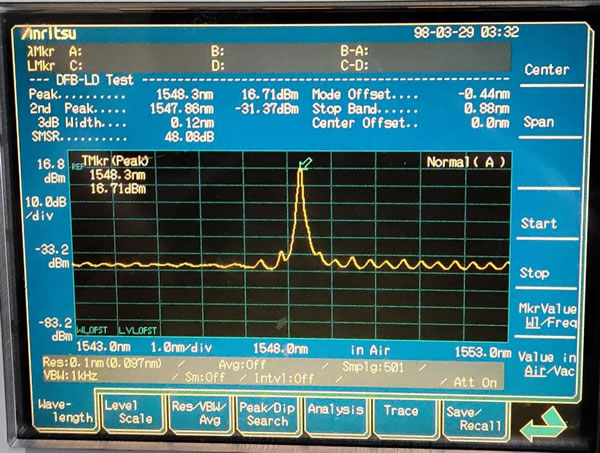

● Cov Ntaub Ntawv Ib Txwm Muaj

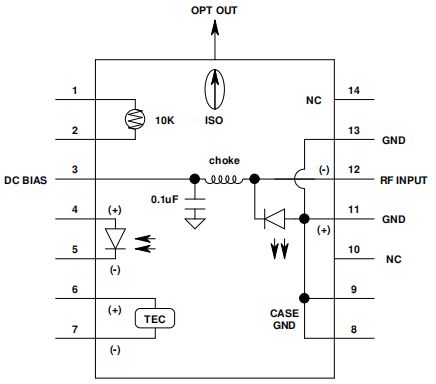

● Daim duab qhia txog hluav taws xob

Tus lej txhuas muaj nuj nqi Tus lej txhuas muaj nuj nqi
1 Tus Ntshai Hluav Taws Xob 8 GND
2 Tus Ntshai Hluav Taws Xob 9 GND
3 LD-(Kev Ntshai) 10 NC
4 PD anode 11 GND (LD +)
5 PD cathode 12 RF HAUV
6 Txias dua 13 GND (LD +)
7 Txias dua- 14 NC

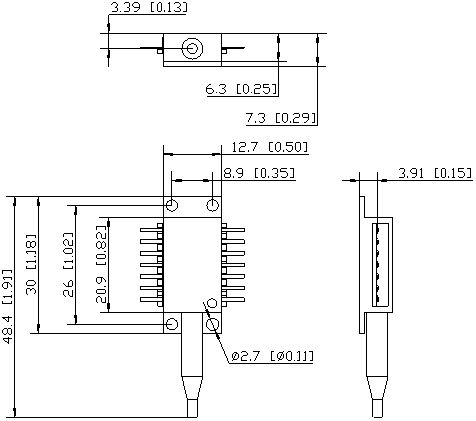

● Dimension thiab Pins (Unit: mm [inch])

RF Txuas: SMA

● Cov ntaub ntawv xaj xaj

Daim ntawv 1:

Code Hauj lwm
55 DWDM Lub Hwj Chim Siab 14PIN npauj npaim pob

Daim ntawv 2:

Code Optical zog
040 40mW
050 50mW
063 63mW
100 100mW

Daim ntawv 3:

Channel Ntau zaus (THz) Center Wavelength (nm)   Channel Ntau zaus (THz) Center Wavelength (nm)
C01 Txhua qhov wavelength uas xav tau C37 193.7 1547.72
C02 Tsis yog-ITU, 1547 nm - 1560 nm C38 193.8 1546.92
C03 Tsis yog-ITU, 1557 nm - 1560 nm C39 193.9 1546.12
C04 Tsis yog-ITU, 1530 nm - 1560 nm C40 194 1545.32
C15 191.5 1565.50 C41 194.1 1544.53
C16 191.6 1564.68 C42 194.2 1543.73
C17 191.7 1563.86 C43 194.3 1542.94
C18 191.8 1563.05 C44 194.4 1542.14
C19 191.9 1562.23 C45 194.5 1541.35
C20 192 1561.41 C46 194.6 1540.56
C21 192.1 1560.61 C47 194.7 1539.77
C22 192.2 1559.79 C48 194.8 1538.98
C23 192.3 1558.98 C49 194.9 1538.19
C24 192.4 1558.17 C50 195 1537.4
C25 192.5 1557.36 C51 195.1 1536.61
C26 192.6 1556.55 C52 195.2 1535.82
C27 192.7 1555.75 C53 195.3 1535.04
C28 192.8 1554.94 C54 195.4 1534.25
C29 192.9 1554.13 C55 195.5 1533.47
C30 193 1553.33 C56 195.6 1532.68
C31 193.1 1552.52 C57 195.7 1531.9
C32 193.2 1551.72 C58 195.8 1531.12
C33 193.3 1550.92 C59 195.9 1530.33
C34 193.4 1550.12 C60 196 1529.55
C35 193.5 1549.32 C61 196.1 1528.77
C36 193.6 1548.51 C62 196.2 1527.99

Daim ntawv 4:

Code Hauj lwm
PM PM-FC/APC fiber connector, 0.9 hli, 1m ntev

● Kev ceev faj

Fiber dabtsi yog khoov vojvoog tsis pub tsawg tshaj 20 hli kom tsis txhob muaj fiber ntau puas.

Nco ntsoov tias qhov sib txuas ntawm fiber ntau yog huv si ua ntej txuas mus rau opto-circuit.

Kev tiv thaiv ESD tsim nyog yog xav tau hauv kev khaws cia, kev thauj mus los thiab siv.

daim ntawv sau npe

CATV

DWDM

Qhov Chaw Dawb Optics

Super trunking thiab kev faib tawm,

Kev Xa Xov Tooj Hauv Optical Networks
