LK-NYCMT Series UWB Transmitter ncaj qha Modulated
- Ultra-wideband (zoo dua 18GHz)
- CWDM
- High-Dynamic-Range
- High tso zis zog
- RIN qis
- Kub ntawm cov ntaub ntawv ua haujlwm: (-40 ℃ ~ 70 ℃)
Hauj lwm yam khoom
Lub tshuab xa xov LK-NYCMT feem ntau yog ua los ntawm cov laser ceev ceev uas hloov kho ncaj qha rau hauv Distributed Feedback (DFB), lub voj voog tswj fais fab kho qhov muag tsis siv neeg, lub voj voog tswj qhov kub thiab txias tsis siv neeg, lub voj voog hloov pauv hluav taws xob ruaj khov, lub voj voog saib xyuas thiab qhia. Lub tshuab xa xov no muaj ntau qhov ntev (1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm) thiab muaj qhov modulation bandwidth uas tshaj 18GHz, nrog rau lub zog tso zis uas muaj peev xwm ncav cuag 10mW.
LK-NYCMT Transmitter ua haujlwm ntawm ib lub zog hluav taws xob zoo thiab tau tsim los ua haujlwm tau zoo hauv qhov voltage ntawm +7V txog +36V. Nws muaj ntau yam zoo, suav nrog lub suab nrov qis (RIN), kev ruaj khov zoo heev hauv qhov wavelength tso zis, thiab lub zog tso zis siab, uas ua ke pab txhawb rau nws qhov kev ua tau zoo tshaj plaws hauv cov kab ke sib txuas lus optical.
Tsis tas li ntawd xwb, lub LK-NYCMT Transmitter muaj lub luag haujlwm qhia txog qhov xwm txheej ntawm lub zog fais fab thiab lub zog hluav taws xob optical, kom ntseeg tau tias cov kev ua haujlwm ntawm lub kaw lus nyob hauv qhov ntau yam xav tau, qhov no yog qhov tseem ceeb rau kev tswj hwm kev ncaj ncees ntawm lub kaw lus thiab pab daws teeb meem sai.
Kev Specifications
Kev Tsis Paub Qhov Siab Ntau
| parameter | cim | Min. | Hom. | Max. | Tsev |
| cia kub | TSTG | -55 | + 25 | + 85 | ℃ |
| lag luam kub | TC | -40 | + 25 | + 70 | ℃ |
| RF fais fab nkag1 | Pin | - | + 10 | + 20 | dBm |
| voltage | Vin | +7 | + 12 | + 36 | V |
(1) Nruam nthwv dej (CW) ua haujlwm hom.
Cov Khoom Siv Kho Qhov Muag thiab Hluav Taws Xob (TC = 22 ± 3 ℃)
| parameter | cim | mob | Min. | Hom. | Max. | Tsev |
| Wavelength | λ | - | 1370 | CWDM | 1390 | nm |
| Zaus (3dB) | f3dB | X-band | 0.1 | - | 12 | GHz |
| Ku band | 1 | - | 18 | |||
| Lub zog tso zis teeb | P | - | 5 | 10 | - | mW |
| Txheeb ze siv nrov nrov | Yob | - | - | - | -155 | dBc/Hz |
| Rov qab poob (VSWR) | VSWR | X-band | - | - | 2 | - |
| Ku band | - | - | 2.2 | |||
| Kev Tawm Tswv Yim 1 dB Kev Sib Nqus | - | - | + 13 | + 15 | - | dBm |
Kev Muab Fais Fab (TC = 22±3℃)
| parameter | Min. | Hom. | Max. | Tsev |
| voltage | +7 | + 12 | + 36 | V |
| Tam sim no(2) | 0.07 | 0.1 | 1 | A |
(2) Kev sim: Vin = + 12V.
● Cov Kab Lus Teb Feem Ntau

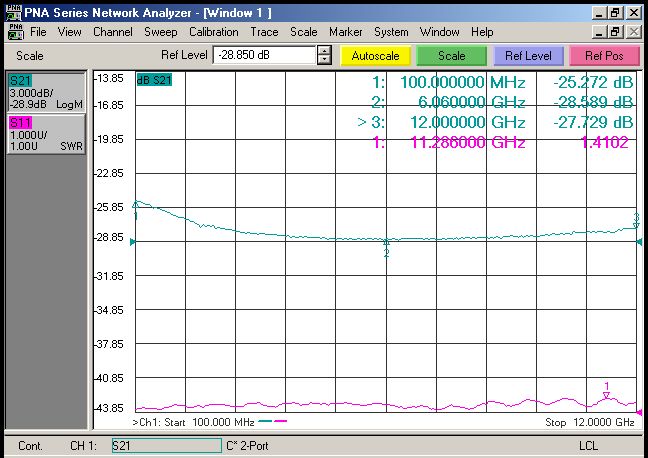

Daim Duab 1 LK-NYCMT-X Transmitter Cov Kab Lus Teb Feem Ntau
Daim Duab 2 LK-NYCMT-Ku Transmitter Cov Kab Lus Teb Feem Ntau
● Cov Spectrogram Ib Txwm Muaj

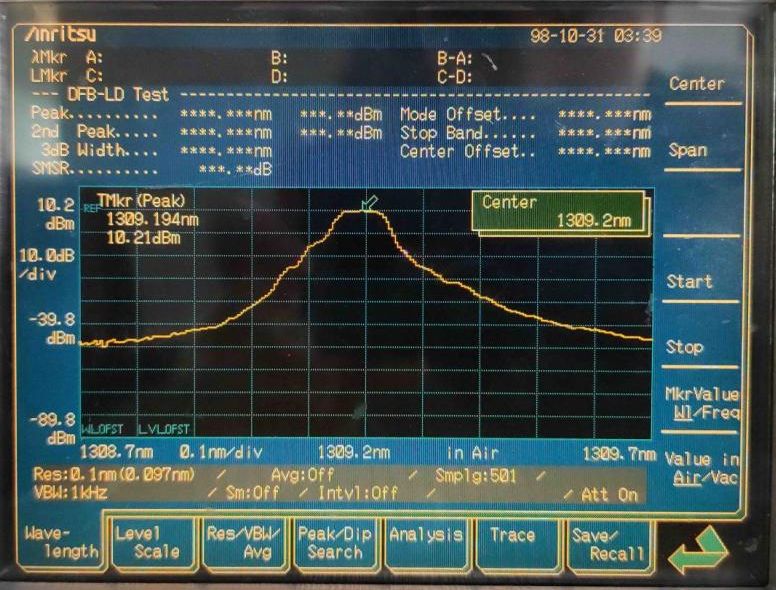

Daim Duab 3 LK-NYCMT Transmitter Spectrogram Ib Txwm Muaj
● Chav Loj: hli [nti]

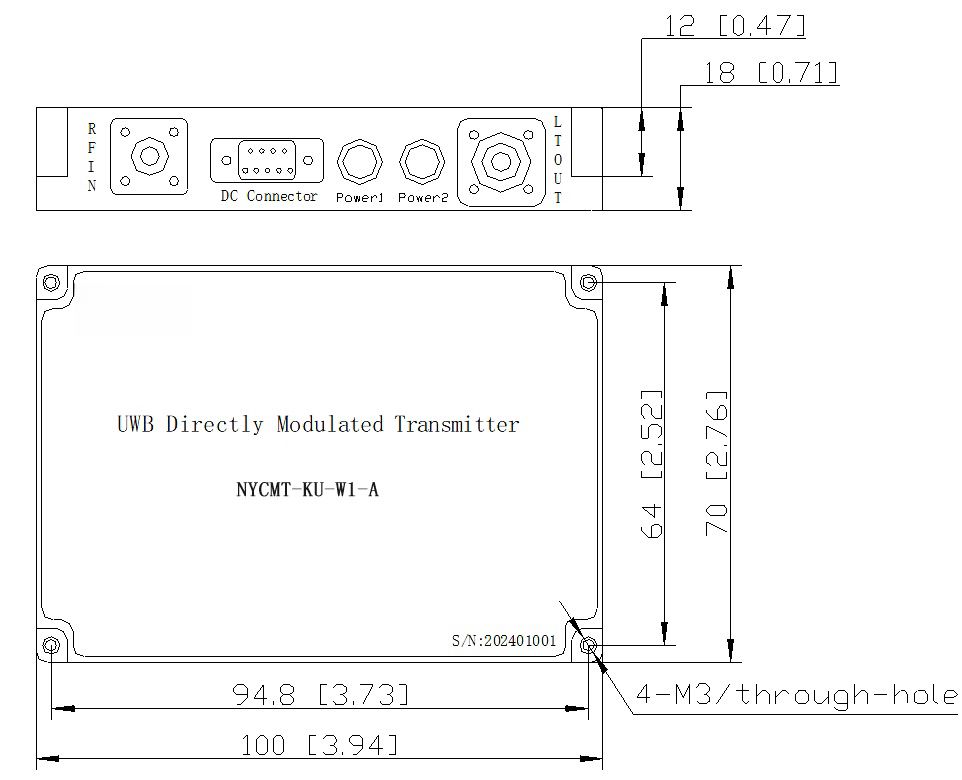

Daim Duab 4 Qhov Loj ntawm Lub Tshuab Xa Xov Tooj LK-NYCMT
RF Txuas: SMA
Lub Hwj Chim Txuas: J30J-9-ZKP
● Pin ntawm Lub Hwj Chim Muab Khoom
| parameter | Hauj lwm | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| voltage | Vin | NC | GND | NC | |||||
● Kev txiav txim ntaub ntawv
Daim ntawv 1:
| cim | Hauj lwm |
| CM | CWDM Coarse Wavelength Division Multiplexer 7PIN npauj npaim pob |
Daim Ntawv 2
| cim | Hauj lwm |
| X | 0.1 mus rau 12 GHz |
| Ku | 1 ~ 18 GHz |
Daim ntawv 3:
| cim | W1 | W2 | W3 | W4 | W5 | W6 | W7 |
| Wavelength (nm) | 1270 | 1290 | 1310 | 1330 | 1350 | 1370 | 1390 |
Daim ntawv 4:
| cim | connector hom | Hauj lwm |
| N | Mekas | Mekas |
| A | FC / APC | Txheem 9/125μm SM fiber |
| P | FC / PC | Txheem 9/125μm SM fiber |
daim ntawv sau npe
Antenna & Radar
Kev tiv thaiv hluav taws xob
Kev sib kis ntawm RF analog
Kev Sib Txuas Lus Wireless Broadband
Mobile kev sib txuas lus hauv paus chaw nres tsheb
