NY30E
NY30E

LK-NY30E Ka-Band Optical Transmitter

  • Ultra-wideband (zoo dua 35GHz)
  • DWDM
  • High-Dynamic-Range
  • High tso zis zog
  • Suab nrov qis sib piv (RIN)
  • Muaj ntau hom kev ua haujlwm
  • Kub ntawm cov ntaub ntawv ua haujlwm: (-40 ℃ ~ 70 ℃)
NCO NTSOOV

+ 86 29 88244373

Hauj lwm yam khoom

LK-NY30E Series Ka-Band Optical Transmitter feem ntau yog ua los ntawm ntau yam khoom tseem ceeb, suav nrog lub teeb laser muaj zog heev, lub zog hloov kho LiNbO3 dav dav, lub voj voog hloov pauv voltage stabilization, lub voj voog tsav tsheb, kev saib xyuas thiab lub voj voog qhia.

Lub transmitter no ua haujlwm hauv ITU-standard dense wavelength division multiplexing (DWDM) spectrum rau nws cov modulated optical signal output. Nws muaj modulation bandwidth uas tshaj 35GHz thiab muaj peev xwm tsim tau lub zog optical output txog li 10mW, nrog rau lub teeb wavelength ruaj khov.

LK-NY30E Series ua haujlwm ntawm ib qho hluav taws xob zoo, tswj kev ua haujlwm zoo hauv qhov ntau ntawm voltage txij li +12V txog +36V. Tsis tas li ntawd, lub transmitter muaj lub luag haujlwm qhia kev sib xyaw ua ke uas muab cov lus teb rov qab tiag tiag ntawm qhov xwm txheej ntawm lub zog hluav taws xob thiab cov zis hluav taws xob optical, ua kom ntseeg tau tias kev ua haujlwm txhim khu kev qha thiab yooj yim rau kev saib xyuas.

Kev Specifications

Kev Tsis Paub Qhov Siab Ntau

parameter       cim Min. Hom. Max. Tsev
cia kub TSTG -55 + 25 + 85 ℃
lag luam kub TC -40 + 25 + 70 ℃
RF fais fab nkag1 Pin - + 15 + 25 dBm
voltage Vin + 12 + 12 + 36 V

(1) Nruam nthwv dej (CW) ua haujlwm hom.

Cov Khoom Siv Kho Qhov Muag thiab Hluav Taws Xob (TC = 22 ± 3 ℃)

parameter       cim Min. Hom. Max. Tsev Ceeb toom
Wavelength λ 1527.99 - 1563.05 nm ITU Tus Qauv
Zaus (3dB) f3dB 2 - 35 GHz -
Lub zog tso zis teeb P 10 - - mW -
Txheeb ze siv nrov nrov Yob - - -155 dBc/Hz -
Rov qab poob (VSWR) VSWR - - 2.5 - -
Kev Tawm Tswv Yim 1 dB Kev Sib Nqus - + 17 - - dBm -

Kev Muab Fais Fab (TC = 22±3℃)

parameter  Min. Hom. Max. Tsev
voltage + 12 + 12 + 36 V
Tam sim no(2) 0.4 0.7 1.2
 A

(2) Kev sim: Vin = + 12V.


● Cov Kab Lus Teb Feem Ntau

Daim Duab 1 LK-NY30E Ka-Band Transmitter Cov Lus Teb Feem Ntau

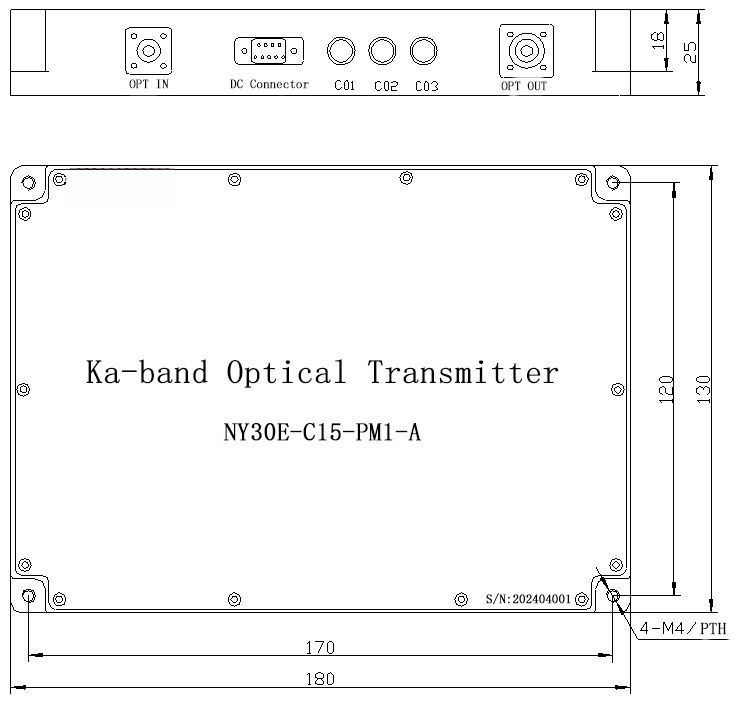

● Chav Loj: hli [nti]

undefined

Daim Duab 2 LK-NY30E Qhov Loj ntawm Lub Tshuab Xa Xov Tooj

RF Txuas: SMA

Lub Hwj Chim Txuas: J30J-9-ZKP


● Pin ntawm Lub Hwj Chim Muab Khoom

parameter Hauj lwm
Pin 1 2 3 4 5 6 7 8 9
voltage Vin NC GND NC


● Kev txiav txim ntaub ntawv

undefined

Daim ntawv 1:

cim Hauj lwm
30E Ka-band Sab Nraud modulation transmitter

Daim ntawv 2:

Code Zaus (THz) Wavelength (nm)   Code Zaus (THz) Wavelength (nm)
C15 191.5 1565.50 C39 193.9 1546.12
C16 191.6 1564.68 C40 194 1545.32
C17 191.7 1563.86 C41 194.1 1544.53
C18 191.8 1563.05 C42 194.2 1543.73
C19 191.9 1562.23 C43 194.3 1542.94
C20 192 1561.41 C44 194.4 1542.14
C21 192.1 1560.61 C45 194.5 1541.35
C22 192.2 1559.79 C46 194.6 1540.56
C23 192.3 1558.98 C47 194.7 1539.77
C24 192.4 1558.17 C48 194.8 1538.98
C25 192.5 1557.36 C49 194.9 1538.19
C26 192.6 1556.55 C50 195 1537.4
C27 192.7 1555.75 C51 195.1 1536.61
C28 192.8 1554.94 C52 195.2 1535.82
C29 192.9 1554.13 C53 195.3 1535.04
C30 193 1553.33 C54 195.4 1534.25
C31 193.1 1552.52 C55 195.5 1533.47
C32 193.2 1551.72 C56 195.6 1532.68
C33 193.3 1550.92 C57 195.7 1531.9
C34 193.4 1550.12 C58 195.8 1531.12
C35 193.5 1549.32 C59 195.9 1530.33
C36 193.6 1548.51 C60 196 1529.55
C37 193.7 1547.72 C61 196.1 1528.77
C38 193.8 1546.92 C62 196.2 1527.99

Daim ntawv 3:

cim Hauj lwm
PM1 Panda Fiber
PM2 Elliptical fiber

Daim ntawv 4:

cim Hauj lwm
CM Cov neeg siv customization
A FC/APC
daim ntawv sau npe

  • Antenna & Radar

  • Satcom

  • Kev tiv thaiv hluav taws xob

  • Kev sib kis ntawm RF analog

  • Kev Sib Txuas Lus Wireless Broadband

  • Mobile kev sib txuas lus hauv paus chaw nres tsheb

  • DWDM system

  • Cov kab ke radar faib tawm
