LK-D-SS-12-T Series Optical Delay Line & Optical Simulator
- Bandwidth mus txog 12GHz
- Muaj ntau yam dynamic
- Daim ntawv thov kub dav
- Kev teb qeeb qeeb
- Kev ncua sijhawm raws li tus kheej
Hauj lwm yam khoom
Siv cov thev naus laus zis microwave photonics, LK-D-SS-12-T series ntawm cov kab qeeb qeeb optical thiab optical simulators muab kev ua tau zoo heev thiab siv dav hauv kev sim radar, kev ua cov teeb liab, phased array antennas, antenna simulation thiab kev sim suab nrov theem. Cov khoom siv no muaj peev xwm ua haujlwm tau zoo thoob plaws tag nrho L/S/C/X frequency band nrog kev poob qis ntawm kev ntxig, ntau yam dynamic, muaj zog electromagnetic isolation, thiab muaj peev xwm tswj tau cov teeb liab triple transmission uas tsis tuaj yeem ntsuas tau. Cov yam ntxwv no ua rau nws zoo tagnrho rau kev ua cov teeb liab optical thiab microwave uas muaj kev ua haujlwm siab.
Kev Specifications
Cov yam ntxwv hluav taws xob / kho qhov muag
| parameter | Parameter Qhov Tseem Ceeb | Tsev | hais | ||
| Min | raug | Max | |||
| zaus khwv | 1 | - | 12 | GHz | |
| Amplitude Flatness | - | ± 2 | ± 2.5 | dB | |
| Ncua Sijhawm | 0.01 | - | 150 | us | Mekas |
| Kev ncua sij hawm raug | -5‰ | - | +5‰ | - | |
| zoo tsis | 0 | 20 | 30 | dB | Mekas |
| Cov lus qhia VSWR | - | 1.8 | 2 | - | |
| Tsim Tawm VSWR | - | 1.8 | 2 | - | |
| impedance | - | 50 | - | Ω | |
| Kev Tawm Tswv Yim 1 dB Kev Sib Nqus | - | + 13 | + 17 | dBm | |
| Qhov piv txwv tsis lees txais cov teeb liab cuav | 60 | - | - | dBc ib | |
| Nrov duab | - | 45 | 55 | dB | 5us, 25 ℃ |
| Kev khiav dej num kub | -55 | - | + 85 | ℃ | Saib Cov Ntaub Ntawv Txog Kev Yuav Khoom |
| cia Kub | -55 | - | + 85 | ℃ | |
| Kev Ncua Sij Hawm Piv Rau Qhov Kub | - | - | 7 | ppm / ℃ | |
| Kev Ntxig Poob vs. Kub | - | 2 | 4 | % / ℃ | |
Kev Piav Qhia Txog Qhov Txuas & Kev Muab Fais Fab
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| voltage | NC | GND | + 12V | NC |
| Kev Ntsuas Tam Sim No | - | - | 0.3 | - |
| Max Tam Sim No | 1 |

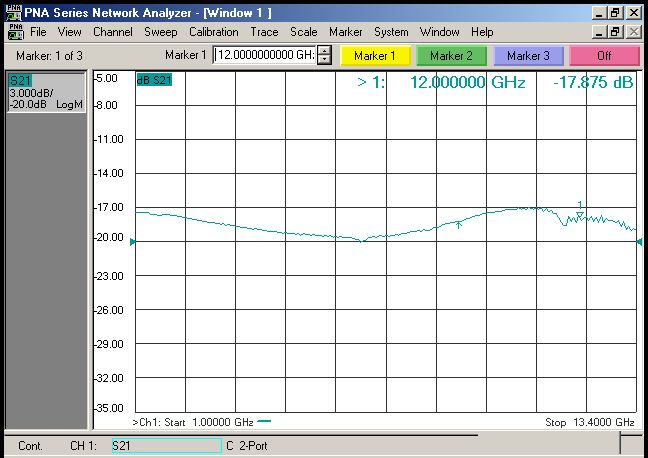

Cov Kab Lus Teb Ib Txwm Muaj ( 25 ℃ )

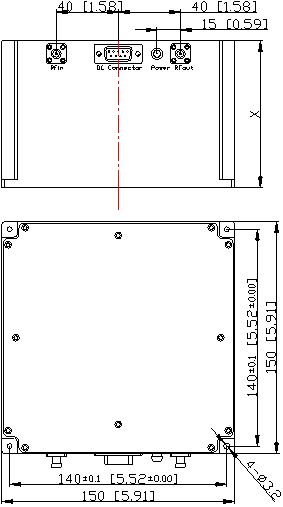

Qhov Loj thiab Cov Pins (Chav: mm [nti])
RF txuas: SMA-K (Customized)
DC connector: DE-9PS (Customized)
| khoom hom | LK-D-SS-12-TG | hais | |||||
| Lub sijhawm ncua (peb) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (hli) | 37 | 50 | 65 | 80 | 90 | 110 | |
| khoom hom | LK-D-SS-12-TP | hais | |||||
| Lub Sijhawm Ncua (peb) | 8 | 35 | 60 | 80 | 110 | 150 | Compact |
| X (hli) | 20 | 45 | 55 | 65 | 78 | 95 | |
Cov Lus Qhia Txiav
| khoom hom | Tej pob khoom | Cov Qib Zoo | Kev khiav dej num kub | cia Kub |
| LK-D-SS-12-TGI | Standard | Qib kev lag luam | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TGM | Qib nruab nrab | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TGS | Qib tshwj xeeb | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-12-TPI | Compact | Qib kev lag luam | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TPM | Qib nruab nrab | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TPS | Qib tshwj xeeb | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
hais1. T yog qhov siab tshaj plaws ntawm kab ncua sij hawm uas chav tsev yog microsecond (us).
daim ntawv sau npe
Kev kuaj/kev kho kom raug radar
Tseg teeb meem
Kev ua tsov rog hluav taws xob
Cov kav hlau txais xov phased
Kev sim ua ntawm lub kav hlau txais xov
