Hauj lwm yam khoom

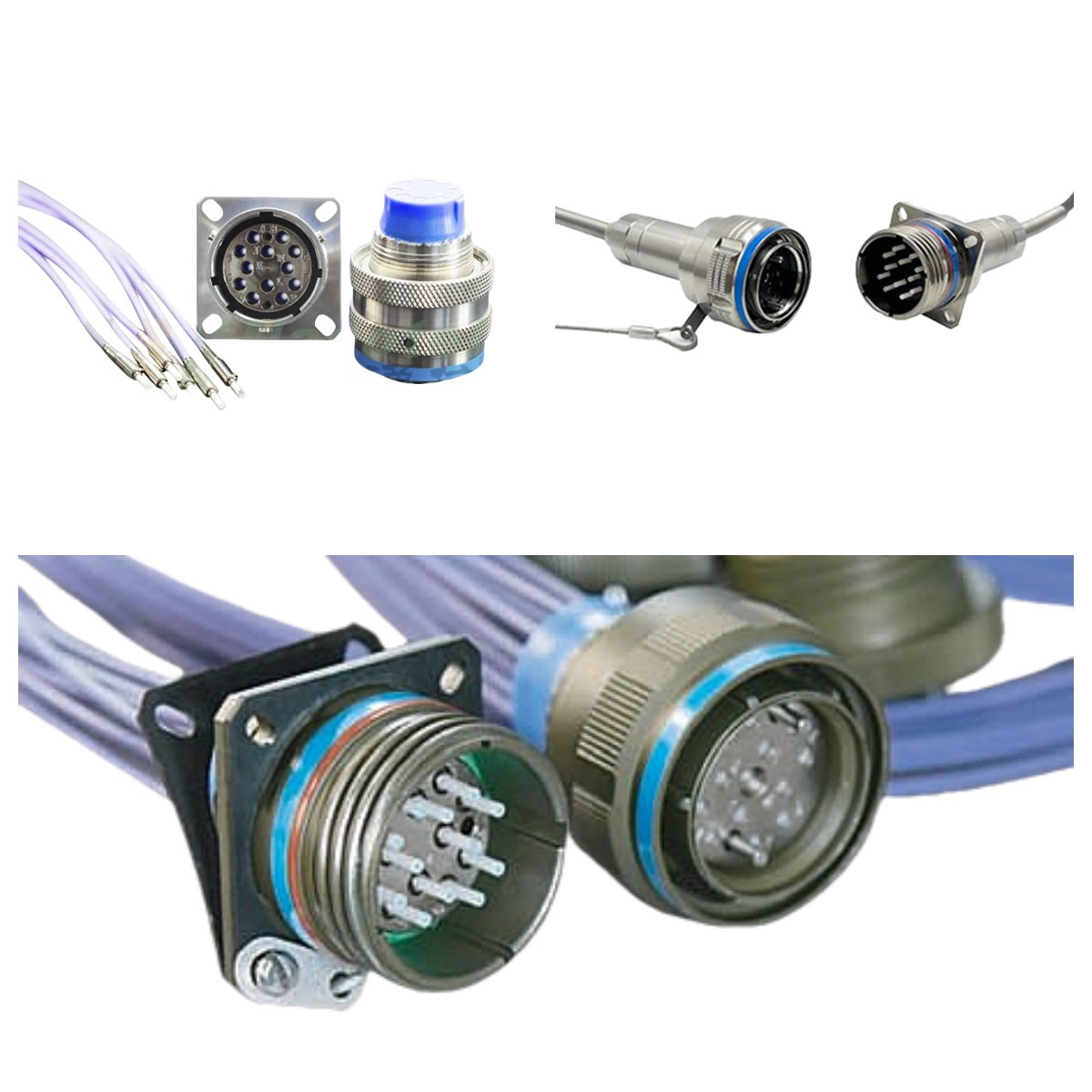

YZE Series Fiber Optic expended beam Connector yog ib qho kev daws teeb meem sib txuas lus uas tsis sib cuag thiab tsis sib cuag uas tsim los rau kev xa xov fiber ntau hauv cov chaw ib puag ncig uas nyuaj thiab tseem ceeb. Nws muaj lub tshuab xauv bayonet nruab nrab thiab cov thev naus laus zis beam-expended, nws ua rau kev sib txuas lus sai thiab tsis sib txuas lus yam tsis muaj kev sib txawv ntawm txiv neej thiab poj niam, thaum txo qhov rhiab heev rau hmoov av, kev co, thiab kev hnav khoom siv.
Lub connector no siv dav hauv kev sib txuas lus tub rog, cov tshuab computer, cov chaw fais fab nuclear, cov tsheb, thiab cov tshuab sib txuas lus thaum muaj xwm txheej ceev uas qhov kev ntseeg siab thiab kev tiv thaiv ib puag ncig yog qhov tseem ceeb.
Ntsiab nta
- Qhov nruab nrab bayonet xauv rau kev sib txuas / kev txiav tawm sai thiab ruaj ntseg
- Tsim tsis muaj poj niam txiv neej (tsis muaj kev sib txawv ntawm txiv neej / poj niam) rau kev ua haujlwm hauv thaj chaw yooj yim
- Beam-expended beam, non-contact optical interface los tiv thaiv fiber kawg ntsej muag
- Qhov chaw teeb pom kev loj heev, tiv taus cov plua plav paug tau zoo
- Lub zog tensile siab, tsim rau cov khoom sib dhos cable rugged
- Cov kev xaiv vaj tse stainless hlau lossis txhuas alloy
- Tsim los rau cov chaw ib puag ncig hnyav suav nrog kev siv tub rog thiab kev lag luam
Kev Specifications
Mechanical Performance
| parameter | specification |
| Mechanical lub neej | ≥ 1000 lub voj voog sib deev |
| Kev tiv thaiv tensile | ≥ 1000 N (nrog rau txoj hlua kom raug) |
| Kev co | 10Hz–55Hz, 0.75mm55Hz–500Hz, 98 m/s² |
| Poob | 490 m/s², 11 ms ib nrab-sine nthwv dejX & Z kev taw qhia, 3 zaug txhua qhov |
Environmental Performance
| parameter | specification |
| Kev khiav hauj lwm kub | -45 ° C txog + 85 ° C (nyob ntawm cable) |
| Kev tiv thaiv kev ntsuas | IP67 |
| Kev tiv thaiv ib puag ncig | Hmoov av, dej noo, kev co |
Optical Performance
| Fiber hom | zoo tsis |
| Multimode | ≤ 1.5 dB (feem ntau 1.2 dB) |
| Ib Leeg | ≤ 2.0 dB (feem ntau 1.0 dB) |
Cov Khoom Siv Txuas Beam Uas Nthuav Dav & Lwm Txoj Kev Txhim Kho Rau Cov Hom Lag Luam Thoob Ntiaj Teb
Peb muab cov khoom siv fiber optic txuas uas tau nthuav dav raws li koj xav tau, thaum muab cov kev xaiv pheej yig thiab txhim khu kev qha rau cov hom lag luam thoob ntiaj teb loj. Txij li kev tsim qauv mus rau kev sib dhos cable, peb pab neeg ua haujlwm engineering ua kom muaj kev sib koom ua ke thiab kev ua haujlwm tau zoo hauv cov chaw ib puag ncig hnyav.
Daim ntawv thov
Kev Tshawb Fawb Txog Huab Cua thiab Avionics
Siv rau hauv cov tshuab dav hlau uas qhov kev tiv thaiv kev co thiab kev sib kis tau zoo ntawm qhov muag pom yog qhov tseem ceeb.
Tub Rog & Tiv Thaiv
Muab kev sib txuas fiber ruaj khov rau kev sib txuas lus tactical hauv cov chaw muaj plua plav thiab siab-kev poob siab.
Tub Rog thiab Tub Rog Hiav Txwv
Zoo tagnrho rau cov nkoj thiab cov tshuab offshore uas raug dej noo, ntsev tsuag, thiab cov xwm txheej hnyav.

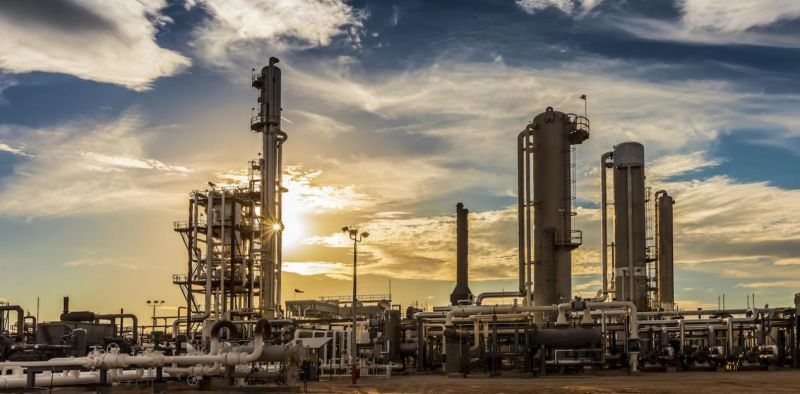

Kev Lag Luam & Ib puag ncig hnyav
Xyuas kom meej tias kev xa cov ntaub ntawv txhim khu kev qha hauv cov chaw tsim khoom, kev khawb av, thiab roj & roj av.
Kev Tshaj Tawm thiab Kev Sib Txuas Lus Sab Nraud
Haum rau kev tshaj tawm sab nraum zoov thiab cov tes hauj lwm hauv thaj teb uas xav tau kev sib txuas fiber ntau ceev thiab txhim khu kev qha.
FAQ
1. Lub txuas fiber optic uas nthuav dav yog dab tsi?
Cov khoom siv txuas ntawm lub teeb uas nthuav dav siv cov iav tsom iav los nthuav dav thiab sib sau ua ke lub teeb, ua rau muaj kev sib kis tau ntawm lub teeb tsis sib chwv. Tus qauv tsim no txhim kho kev tiv thaiv plua plav thiab kev ua qias tuaj.
2. Koj cov connectors txhawb nqa cov qauv twg?
Peb cov khoom sib txuas tuaj yeem tsim los ua raws li MIL-DTL-38999, MIL-DTL-83526, thiab ARINC 801 cov qauv.
3. Koj puas txhawb kev hloov kho?
Yog. Peb tuaj yeem muab cov kev daws teeb meem tshwj xeeb suav nrog kev suav cov fiber, qhov sib txuas interface, thiab cov cable sib dhos raws li qhov yuav tsum tau ua ntawm qhov project.
4. Koj cov khoom puas hloov tau cov npe nrov thoob ntiaj teb?
Yog. Peb cov txuas txuas ntxiv tau tsim los muab kev ua tau zoo sib xws rau cov npe lag luam thoob ntiaj teb, thaum muab kev hloov kho tau yooj yim thiab tus nqi sib tw.
5. Cov lag luam twg siv cov khoom txuas uas nthuav dav?
Lawv siv dav hauv kev tsav dav hlau, kev tiv thaiv, cov khoom siv lag luam, cov kab ke sib txuas lus sab nraum zoov, thiab cov ntawv thov ib puag ncig hnyav.
6. Cov txiaj ntsig ntawm cov txuas txuas beam nthuav dav yog dab tsi?
Muaj zog tiv taus plua plav thiab kev ua qias tuaj; Lub neej ntev dua; Txo qhov yuav tsum tau ntxuav; Kev ua tau zoo hauv qhov chaw ib puag ncig hnyav.
Vim Li Cas Thiaj Koom Tes Nrog Peb

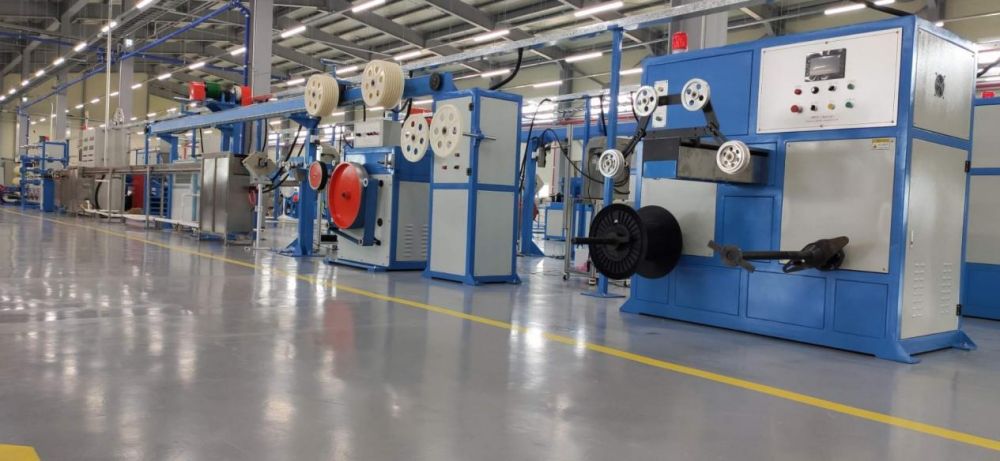

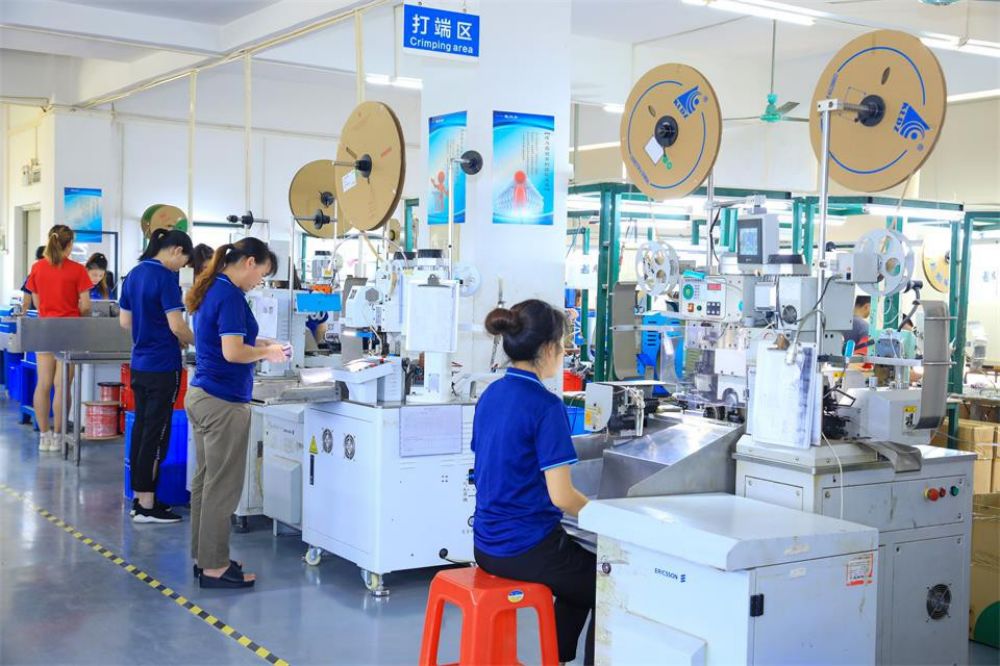

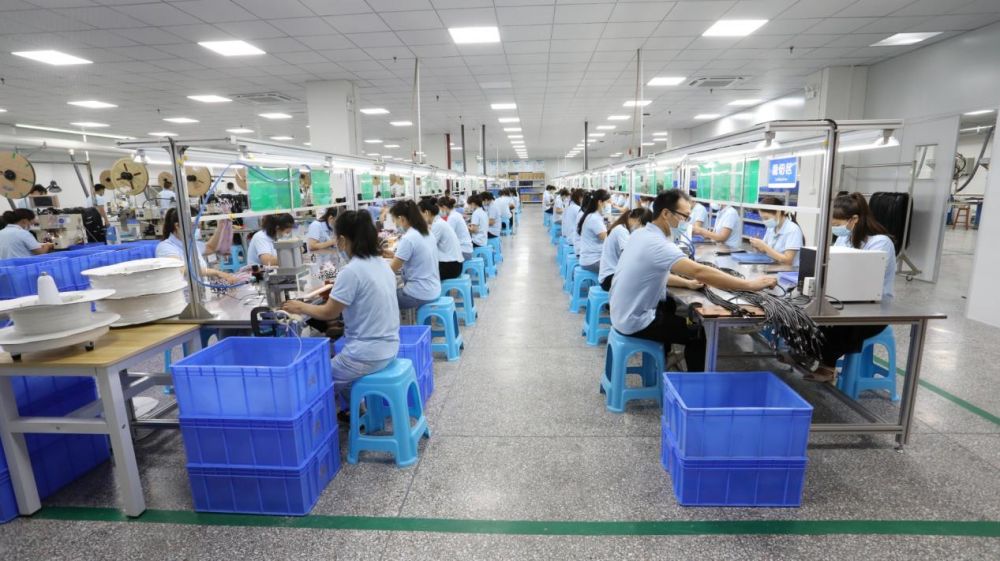

Chaw Tsim Khoom Siv Txuas Txuas Beam Expanded
Peb muab cov khoom siv fiber optic txhim khu kev qha uas tsim los rau cov ntawv thov xws li aerospace, kev tiv thaiv, thiab kev lag luam.
Kev Sib Tw Thoob Ntiaj Teb
Peb cov khoom sib txuas tau tsim los ua raws li cov qauv kev lag luam xws li MIL-DTL-38999, MIL-DTL-83526, thiab ARINC 801, kom ntseeg tau tias muaj kev sib koom ua ke nrog cov kab ke uas twb muaj lawm.
Custom Design Muaj peev xwm
Peb txhawb nqa kev hloov kho tau yooj yim suav nrog qhov loj ntawm lub plhaub, suav cov fiber, cov khoom sib dhos cable, thiab cov kev daws teeb meem optical / hluav taws xob sib xyaw kom ua tau raws li cov kev xav tau tshwj xeeb ntawm cov haujlwm.
Lwm Txoj Kev Txhim Kho Rau Cov Hom Lag Luam Thoob Ntiaj Teb
Peb cov kev daws teeb meem muaj kev ntseeg siab thiab kev ua tau zoo sib xws rau cov npe lag luam thoob ntiaj teb, muab rau cov neeg siv khoom nrog kev xaiv pheej yig thiab txhim khu kev qha.
Quality & Reliability
Txhua yam khoom raug kuaj xyuas nruj kom ntseeg tau tias muaj kev ua haujlwm kho qhov muag ruaj khov thiab lub neej ntev hauv cov chaw ib puag ncig hnyav.
Kev Pabcuam Tshaj Haujlwm
Peb muab kev txhawb nqa kev siv tshuab tag nrho los ntawm kev xaiv cov khoom sib txuas thiab kev kho kom haum rau kev sib dhos cable, kev teeb tsa, thiab kev txhawb nqa kev tsim kho mus sij hawm ntev.
Thov ib qho kev hais nqe hnub no thiab nrhiav qhov txuas txuas beam uas tsim nyog rau koj qhov project.
